The Modern Radio Laboratories ® One Tube All Wave Receiver


Analog Dial    MRL 1 Tube Example #2 1 Tube Clone Example #3 Example #4 Example # 5

This builder used a crinkle finish on the front panel. On the left, the shaft to the antenna tuner is broken off. How do these things happen?

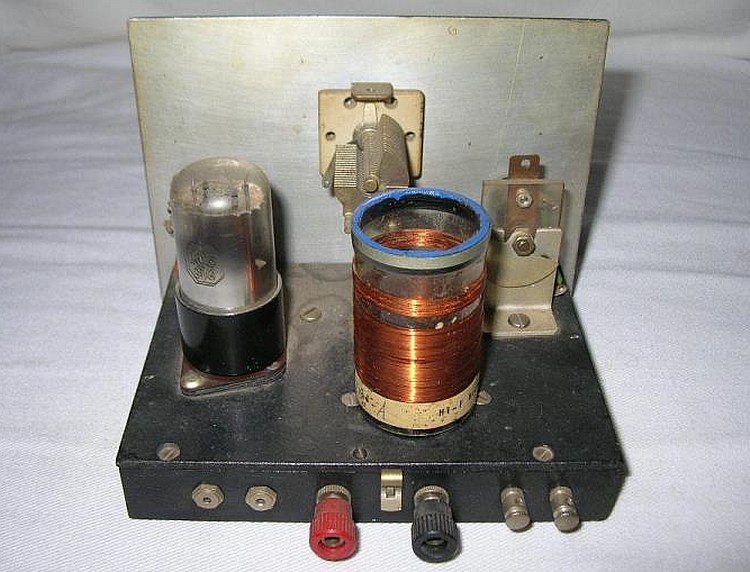

The painted base looks metallic.

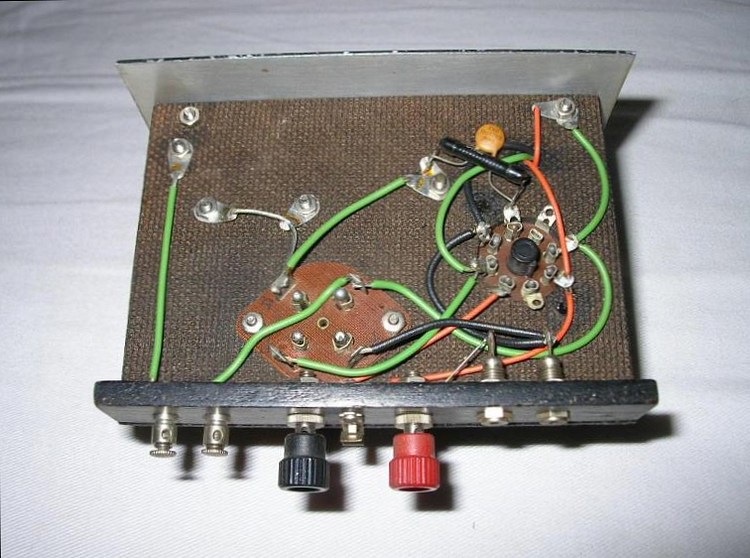

Bottom view.

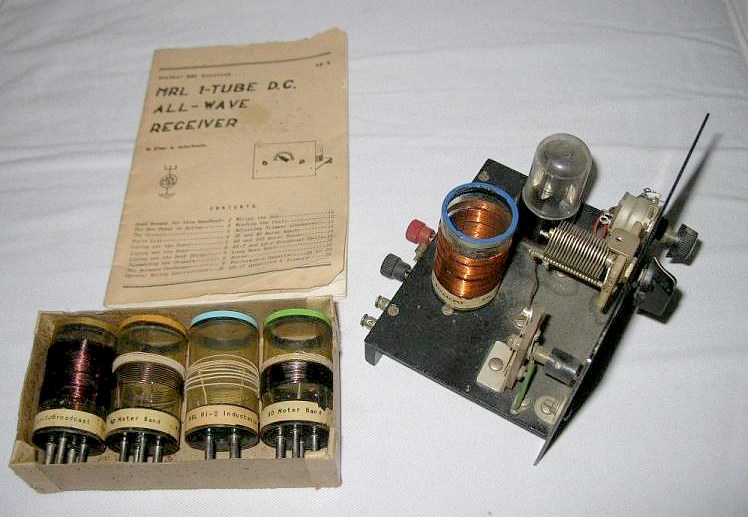

These pictures were sent in by "radiohenry." This set was auctioned on ebay in April of 2014.
His top bid of $75 did not score the set for him, but he kept these pictures.

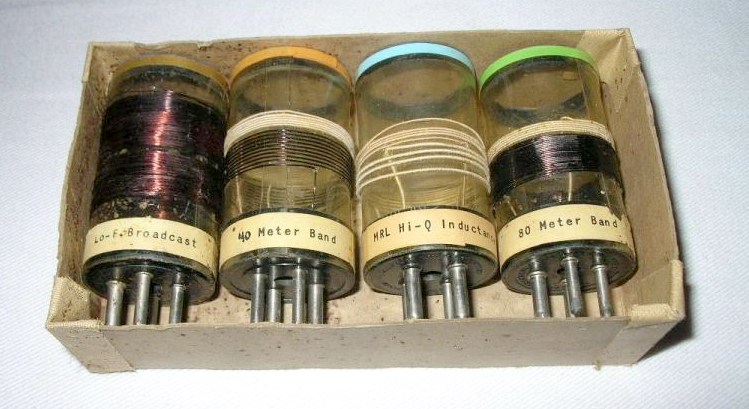

The bases of these coils are factory made, probably repurposed tube bases.

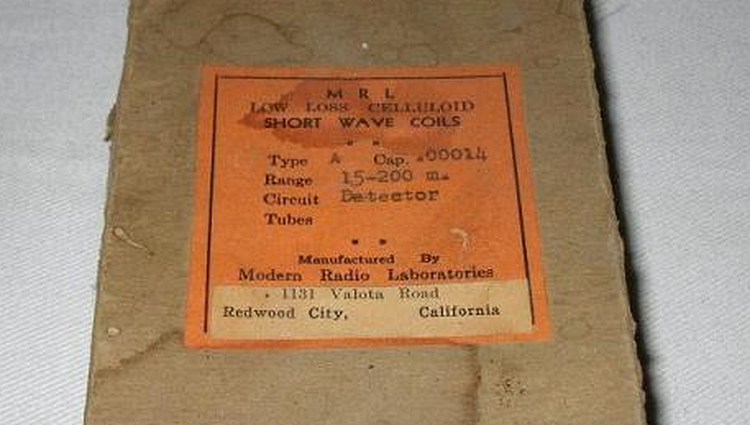

The address on the box top is 1131 Valota Road, so these coils ware made around 1960, give or take a few years.
