Philmore VC-1000 Crystal Set |
|
|
|
|
|
|
|

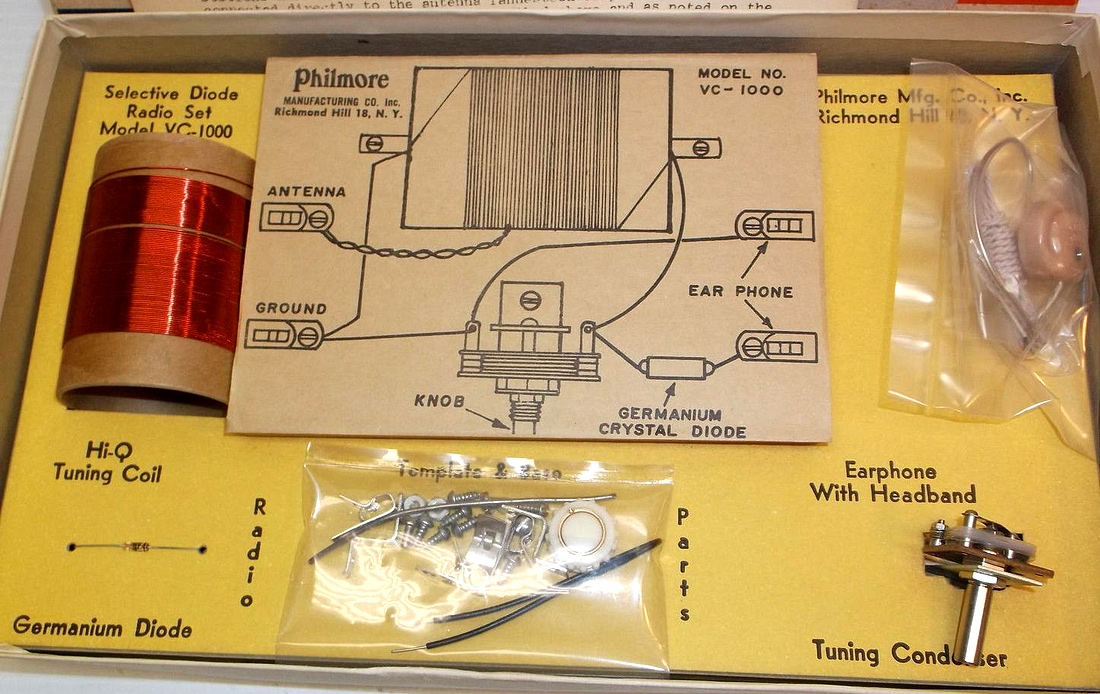

Box top of the Philmore VC-1000 crystal radio
kit. |
|
|
|
|
How it looked when it was new (photo from
Worthpoint).
The description "Earphone With Headband" agrees with the drawing
on the box, but it came with a crystal earplug.
This might have been a cost cutting measure. Later kits
didn't even come in a box, they were in a blister pack. |
|
|
|
|
|
|
|
|

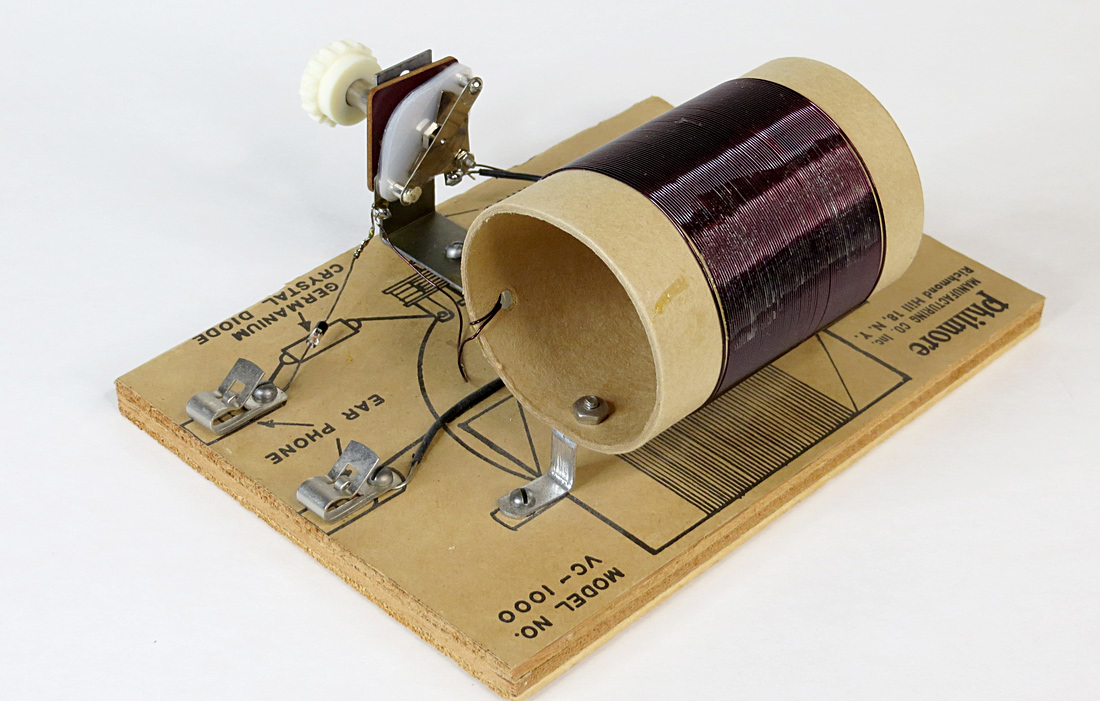

This radio was given to me by a fellow
crystal set fan named Vic Rodriguez.
|
|
|

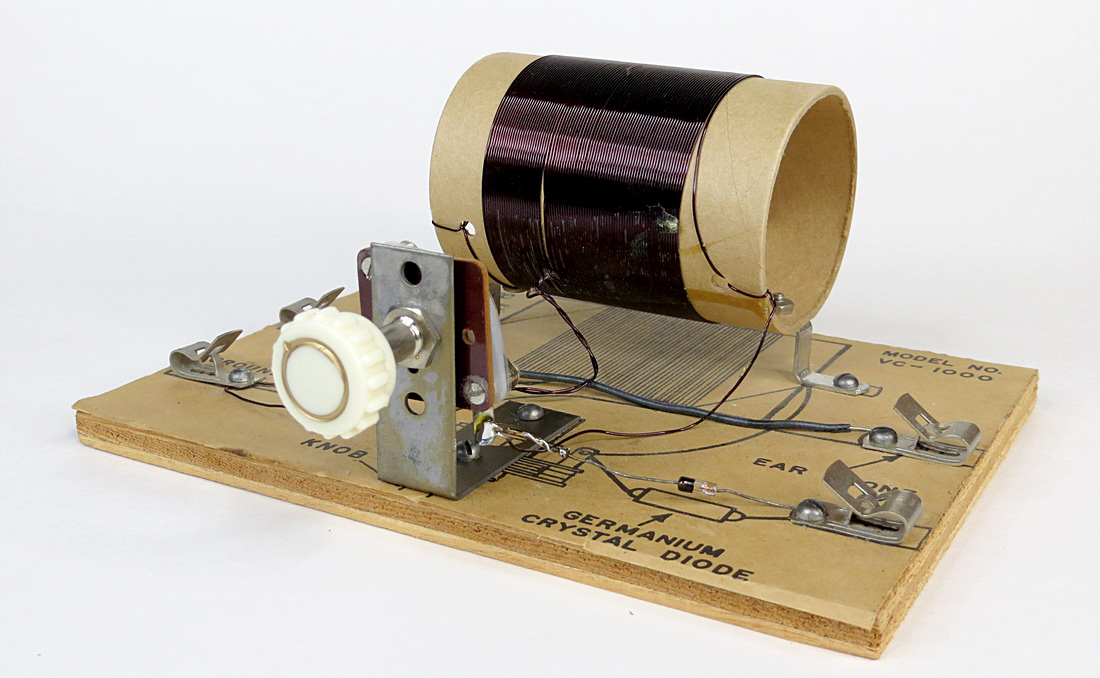

The radio only has three parts. A coil, a
variable capacitor, and a 1N34A crystal diode.
It works very well for a radio consisting of three
parts!
|
|
|

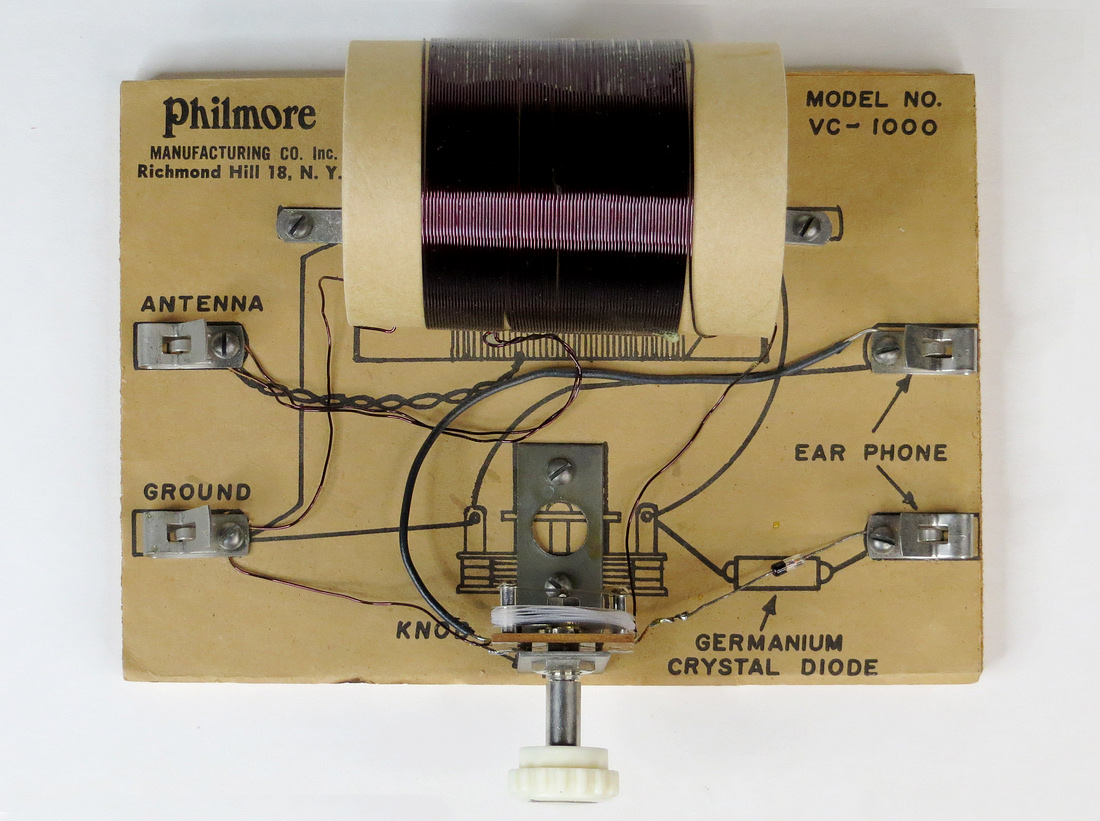

The drawing on the base is a self-adhesive sticker
supplied with the kit.
|
|
|
|

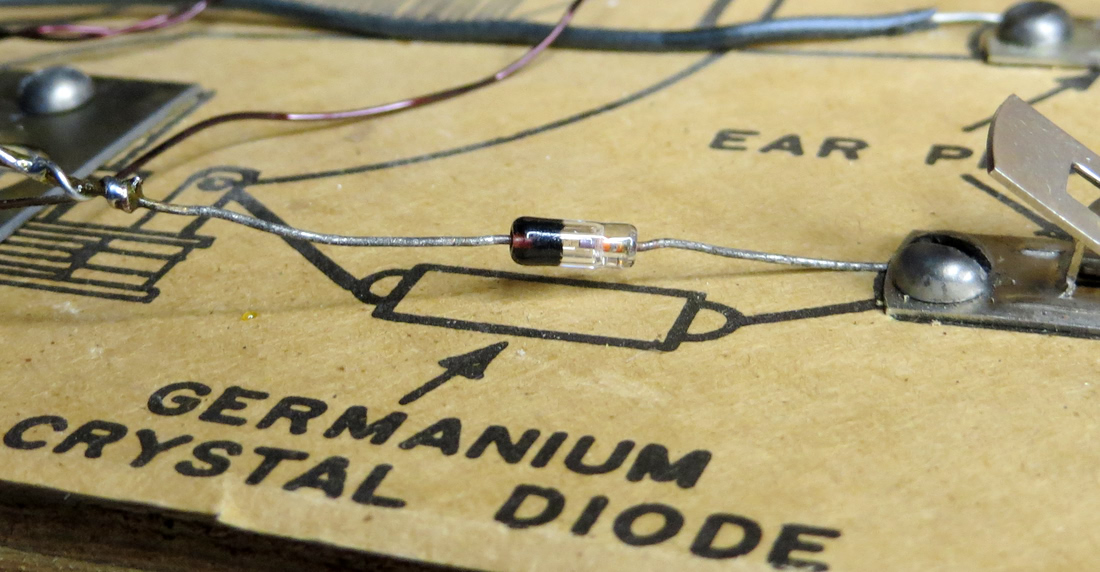

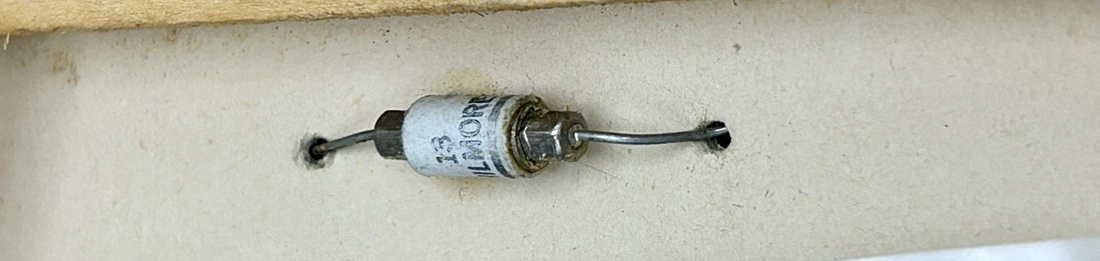

The crystal diode is
original to the kit, though it doesn't match the picture on the box. |
|
|
|
|
|
At one time the diode was this style. |
|
|
|
|
|

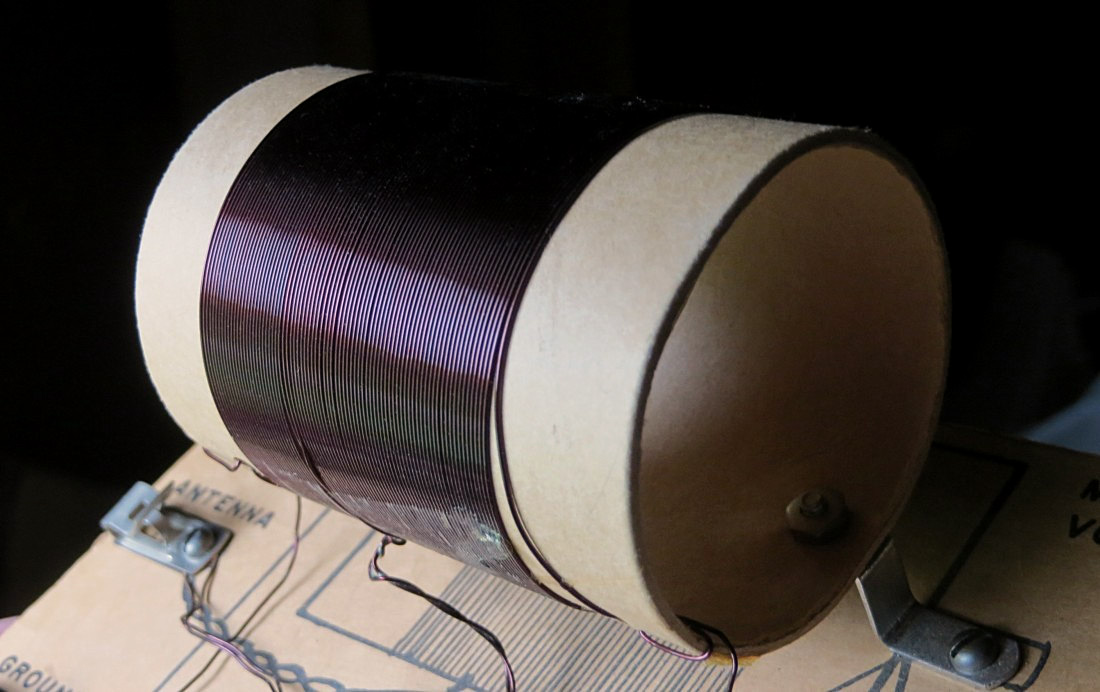

The prewound coil consists of 80 turns #24
enameled wire, with a tap at turn 25, on a 2" diameter
cardboard tube. |
|
|
|
|
|

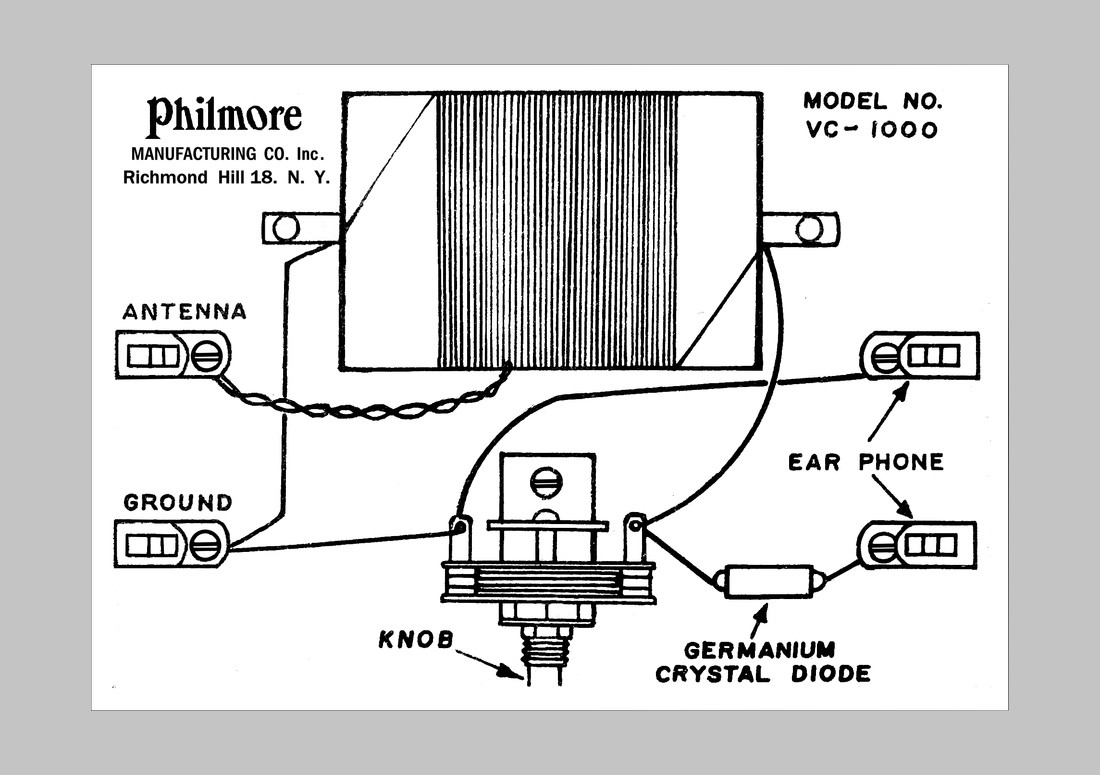

Recreated self-adhesive template.
|
|
|
|
|
|

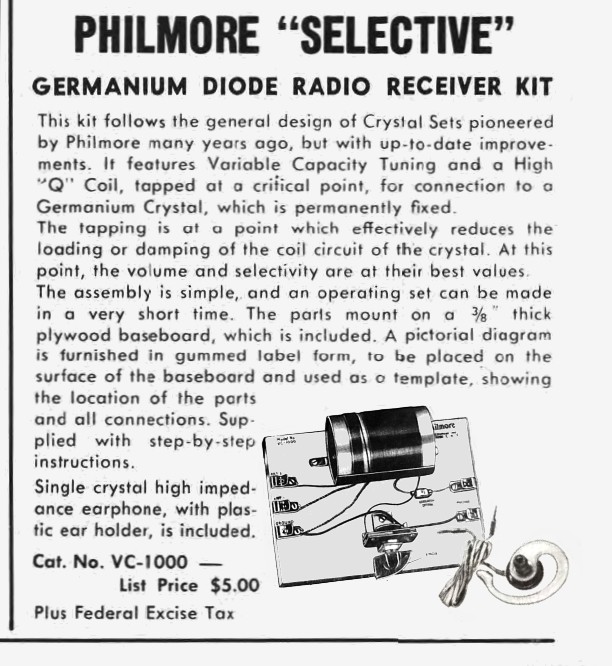

| Entry from the
1960 Philmore catalog. |
|
|
|
|
|
|
The picture of the radio on the box is from the
1950s and didn't match what came in the box. |
|
|
|
|

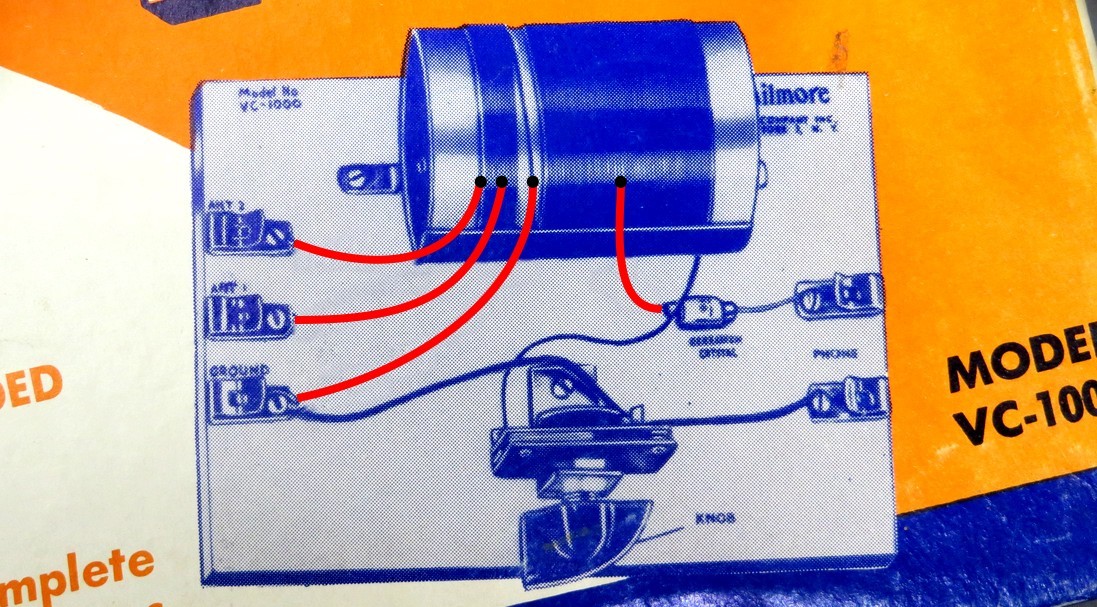

| This is how the original
circuit was wired. Notice the "chicken head" knob. |
|
|
|
|
|
|

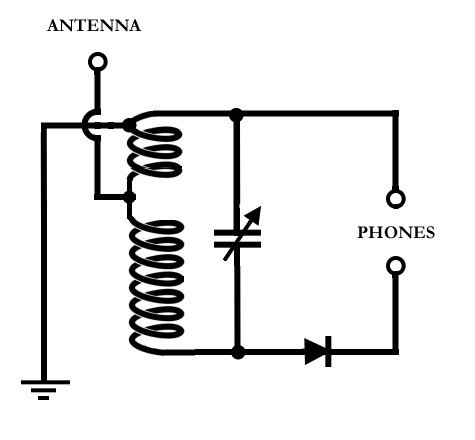

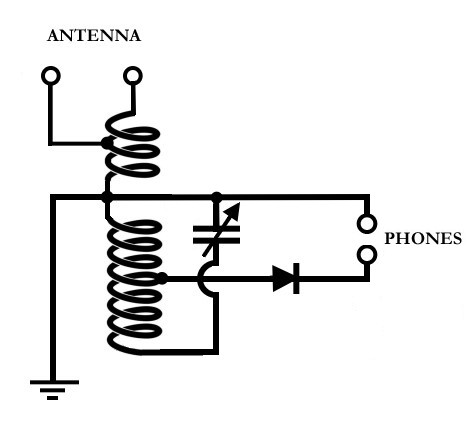

The 1955 circuit and the 1965 circuit. Which works
better? We'll have to try both in order to find out. |
|
|
|
|
|
This box is from 1955. |
|
|
|
|
|
|
|
|
|
Steve Mark listening in with his VC-1000. Photo taken around 1965
by his brother, Cary. |
|
|
|
|
|
|
|
|

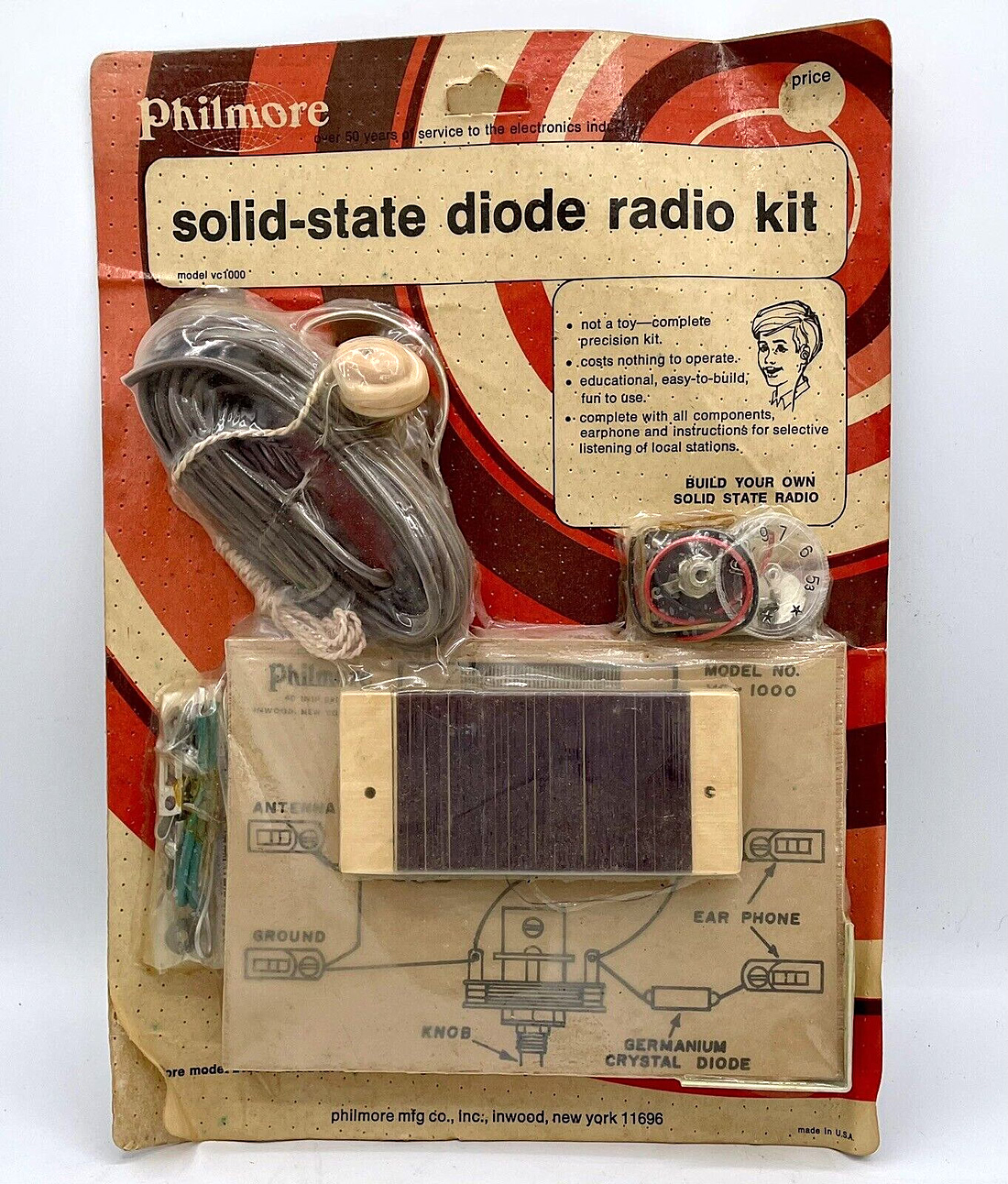

Eventually they did away with the box
and replaced it with this shrink-wrapped abomination. The
Inwood, NY address dates this to sometime after 1970.
The
coil is wound on a block of wood. The drawing of the kid on
the card looks like he uses the word "Dolp" when he begins a
sentence. "BUILD YOUR
OWN SOLID STATE RADIO" is a marketing gimmick to make a kid
think this thing will rival a transistor radio.
What is the
hank of black wire for? It looks too short to be used for an
antenna but maybe that's what it is. |
|
|
|
|
|
|
|
|
|
|
A brief demonstration. |
|
|
|
